Introduction to the Product

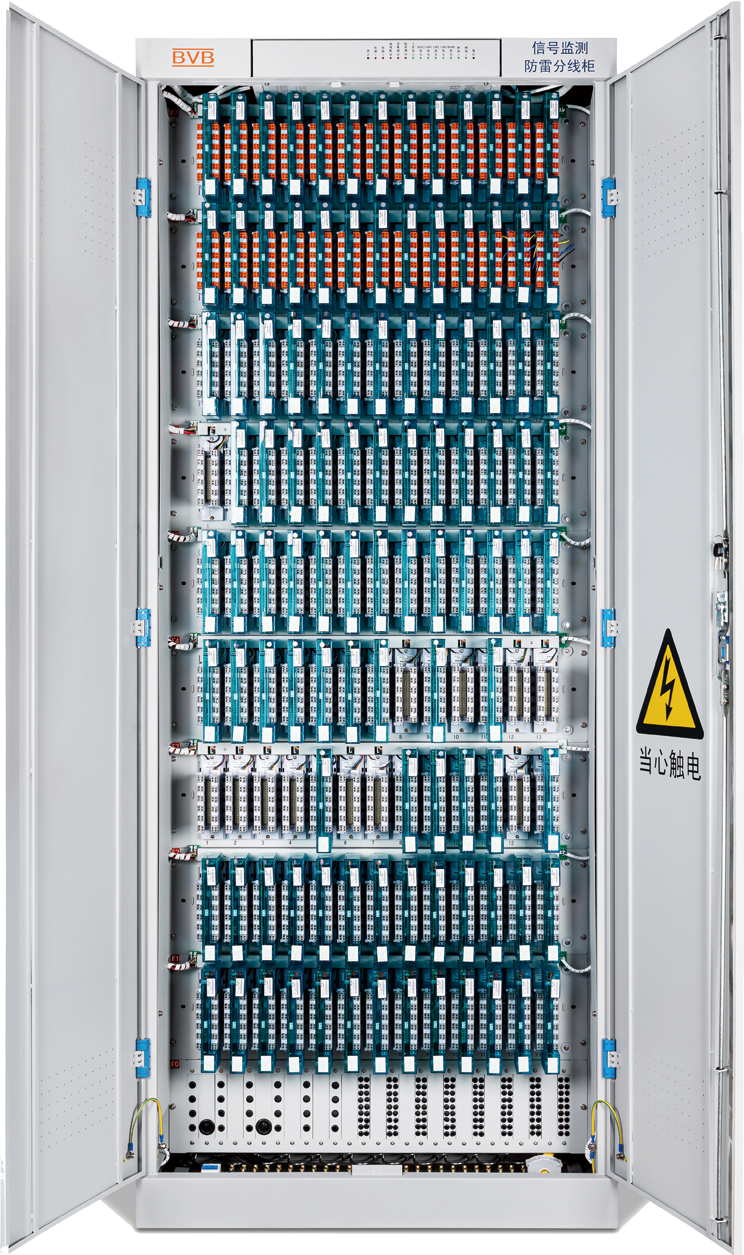

The GFL1-JC signal monitoring lightning protection wiring cabinet, with the function of indoor and outdoor wiring and lightning protection grounding, integrates the analog quantity collecting and monitoring function for centralized signal monitoring, which collects and monitors such analog quantity as AC/DC votage and current of all signal equipment passing by, and provides the switching value of each lightning protection module's status (functioning or fault), so as to provide basic data to the intelligent analysis system for railway electrical maintenance.
● Providing functions of Cable distribution, lightning protection and data collection, with lightning flow monitoring function.
● Simultaneously collect signal simulation quantity and switching times of lightning protection module.
● Data is stored locally and is uploaded to the host computer via the Bus.
● Clear function screen;sound-light alarm; main device hot backup.
● Misinsertion identification; hot-plug design;easy installation and maintenance.
Railway Signal Centralized Monitoring Equipment

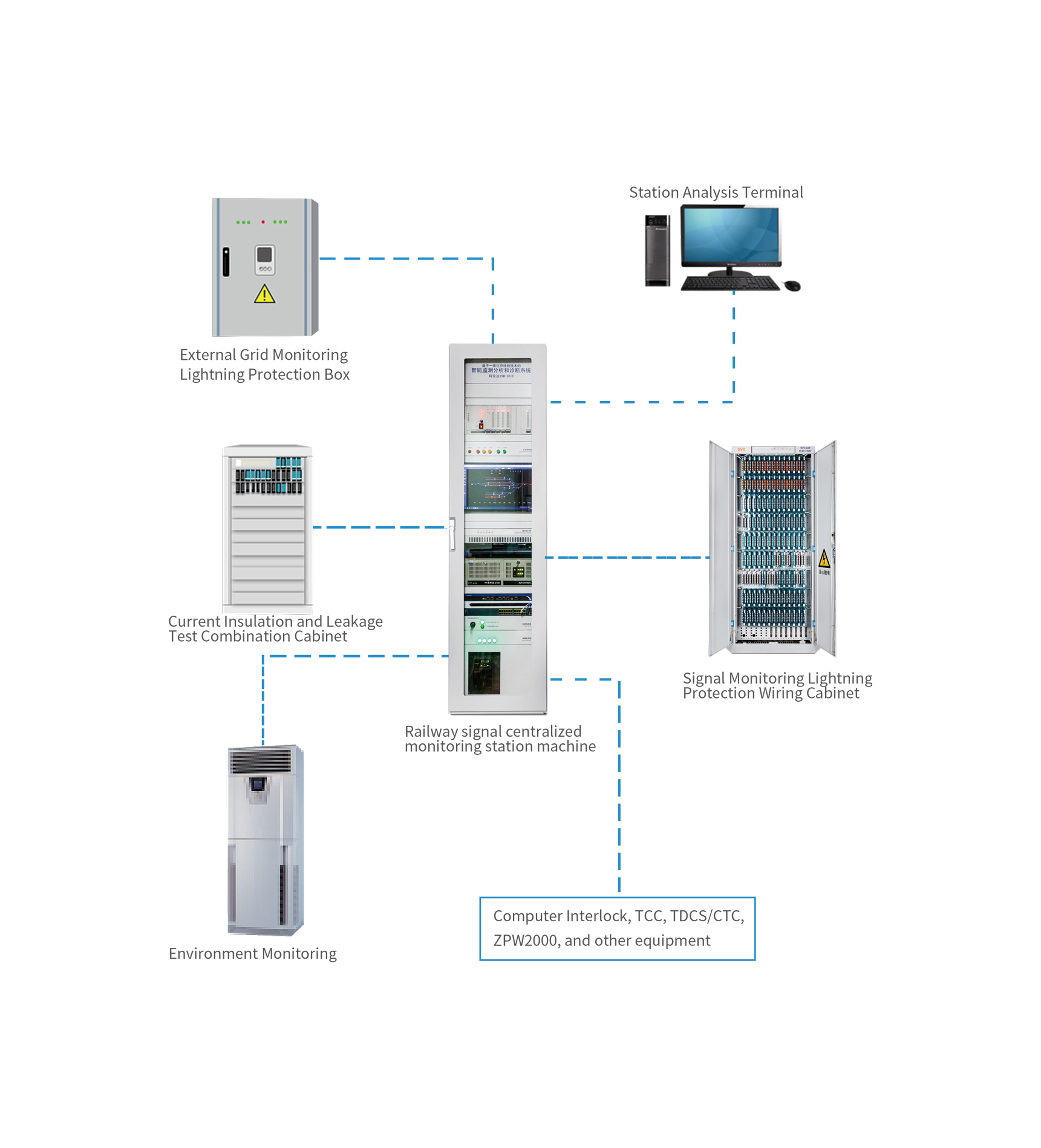

Railway signal centralized monitoring equipment include monitoring cabinet, external grid monitoring lightning protection box, signal monitoring lightning protection cable distribution cabinet, and other relevant equipment, which conforms to the “ Q/CR 442-2020 Railway Signal Centralized Monitoring System Technical Requirement”, the “Q/CR573-201 Railway Signal Centralized Monitoring Equipment” and other relevant monitoring and safety criterion, and exchange data with sub-system and equipment manufacturers (such as computer interlock, TCC, TDCS/CTC and other equipment), so as to obtain monitoring information and realize centralized storage of information related to the signal equipment health status and their maintenance records.
